Le griglie di supporto TEM EM-Tec di alta qualità sono progettate come griglie di supporto robuste e stabili. Sono disponibili in una varietà di materiali per adattarsi all’applicazione a portata di mano.
I materiali sono rame standard, nichel, oro e molibdeno e inoltre titanio, alluminio e acciaio inossidabile.
Esistono due processi di produzione utilizzati per le griglie di supporto TEM EM-Tec:
Dopo la produzione, le reti EM-Tec sono sottoposte a un processo di pulizia proprietario per ridurre i problemi di contaminazione. Tutte le griglie EM-Tec TEM sono ispezionate per garantire la qualità al 100%. Lo spessore delle griglie TEM EM-Tec si traduce in una griglia TEM più rigida e stabile per il supporto del campione e i film di supporto del campione. Il bordo largo 375um contribuisce a una maggiore rigidità e rende la movimentazione e il trasporto delle griglie molto più facili delle griglie con un bordo più stretto. Le griglie di supporto TEM di alta qualità EM-Tec sono confezionate in fiale di plastica antistatiche con fiale da 100 griglie per Cu, Cu / Rh e Ni. Le griglie EM-Tec realizzate in Au, Mo, Al, Ti e acciaio inossidabile sono confezionate in fiale da 25 griglie. Tutti hanno il diametro standard di 3,05 mm. I modelli disponibili sono:
I vantaggi delle griglie di supporto EM-Tec TEM di alta qualità sono:
 |

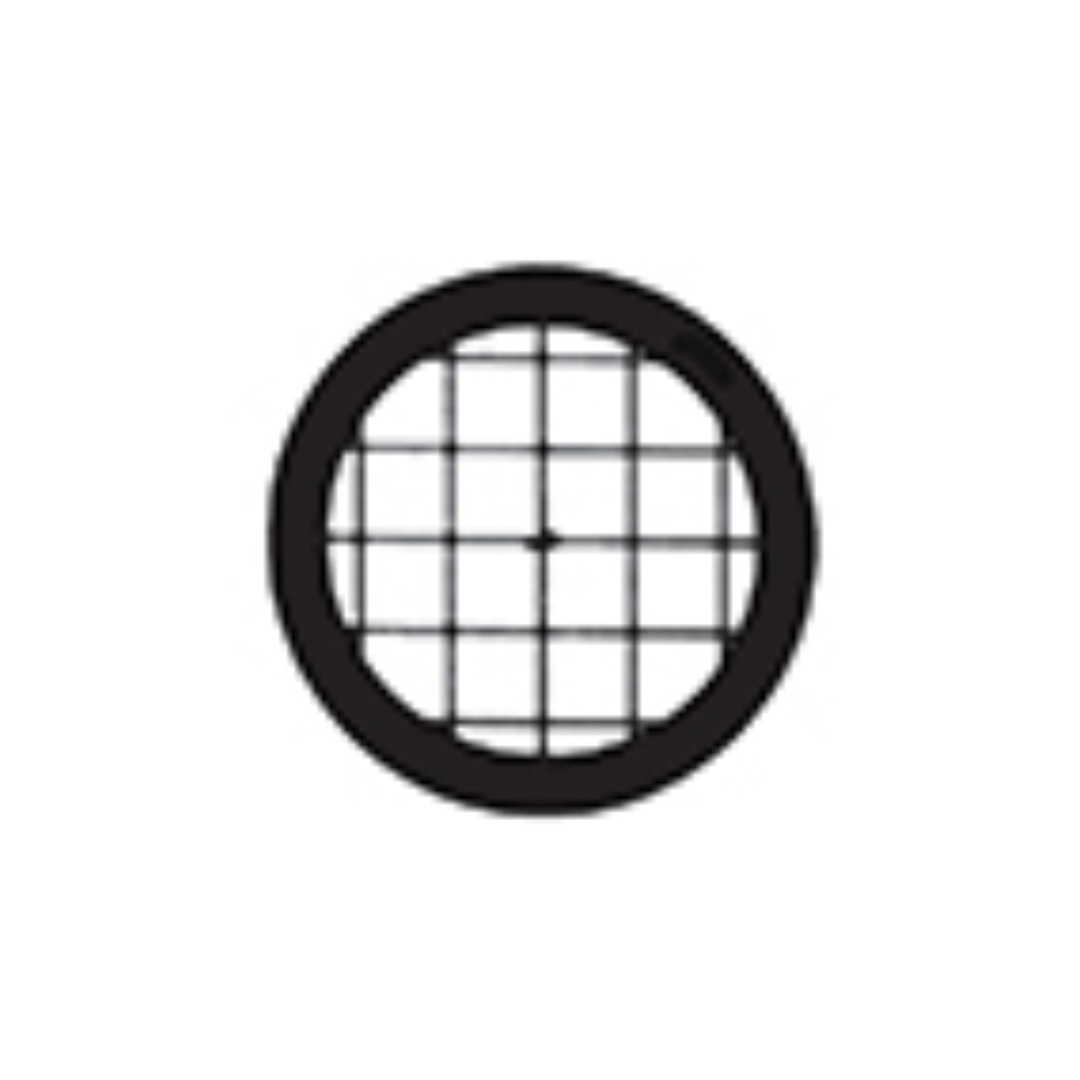

Griglie di supporto a maglia quadrata EM-Tec TEM, 50 mesh, foro 425 μm, barra 83 μm |
|---|---|
| Product # | Unit |
| 21-1M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Copper |
| 21-2M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Nickel |
| 21-3M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Gold |
| 21-4M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Molybdenum |
| 21-5M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Aluminium |
| 21-6M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Titanium |
| 21-7M0050 | EM-Tec TEM square mesh support grids, 50 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 75 maglie, foro 284 μm, barra 55 μm |
|---|---|
| Product # | Unit |
| 21-1M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Copper |
| 21-9M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Copper/Rhodium |
| 21-2M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Nickel |
| 21-3M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Gold |
| 21-4M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Molybdenum |
| 21-5M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Aluminium |
| 21-6M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Titanium |
| 21-7M0075 | EM-Tec TEM square mesh support grids, 75 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 100 mesh, foro 204 μm, barra 50 μm |
|---|---|
| Product # | Unit |
| 21-1M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Copper |
| 21-9M0075 | EM-Tec TEM square mesh support grids, 100 Mesh, Copper/Rhodium |
| 21-2M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Nickel |
| 21-3M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Gold |
| 21-4M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Molybdenum |
| 21-5M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Aluminium |
| 21-6M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Titanium |
| 21-7M0100 | EM-Tec TEM square mesh support grids, 100 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 150 mesh, foro 125 μm, 44 μm bar |
|---|---|
| Product # | Unit |
| 21-1M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Copper |
| 21-9M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Copper/Rhodium |
| 21-2M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Nickel |
| 21-3M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Gold |
| 21-4M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Molybdenum |
| 21-5M0150 | EM-Tec TEM square mesh support grids, 150 Mesh ,Aluminium |
| 21-6M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Titanium |
| 21-7M0150 | EM-Tec TEM square mesh support grids, 150 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 200 mesh, foro 90 μm, 37 μm bar |
|---|---|
| Product # | Unit |
| 21-1M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Copper |
| 21-9M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Copper/Rhodium |
| 21-2M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Nickel |
| 21-3M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Gold |
| 21-4M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Molybdenum |
| 21-5M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Aluminium |
| 21-6M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Titanium |
| 21-7M0200 | EM-Tec TEM square mesh support grids, 200 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 300 mesh, foro 54 μm, barra 31 μm |
|---|---|
| Product # | Unit |
| 21-1M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Copper |
| 21-9M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Copper/Rhodium |
| 21-2M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Nickel |
| 21-3M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Gold |
| 21-4M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Molybdenum |
| 21-5M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Aluminium |
| 21-6M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Titanium |
| 21-7M0300 | EM-Tec TEM square mesh support grids, 300 Mesh, Stainless Steel |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 400 mesh, foro 38 micron, 26 micron bar |
|---|---|
| Product # | Unit |
| 21-1M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Copper |
| 21-9M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Copper/Rhodium |
| 21-2M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Nickel |
| 21-3M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Gold |
| 21-5M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Aluminium |
| 21-6M0400 | EM-Tec TEM square mesh support grids, 400 Mesh, Titanium |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 500 mesh, foro 28 μm, 23 μm bar |
|---|---|
| Product # | Unit |
| 21-1M0500 | EM-Tec TEM square mesh support grids, 500 Mesh, Copper |
| 21-2M0500 | EM-Tec TEM square mesh support grids, 500 Mesh, Nickel |
| 21-3M0500 | EM-Tec TEM square mesh support grids, 500 Mesh, Gold |
 |
Griglie di supporto a maglia quadrata EM-Tec TEM, 600 mesh, foro 26 μm, barra 15 μm |
|---|---|
| Product # | Unit |
| 21-1M0600 | EM-Tec TEM square mesh support grids, 600 Mesh, Copper |
| 21-2M0600 | EM-Tec TEM square mesh support grids, 600 Mesh, Nickel |
 |
Griglie di supporto a maglia esagonale EM-Tec TEM, 90 mesh, foro 224×269 μm, barra 48 μm |
|---|---|
| Product # | Unit |
| 21-1H0090 | EM-Tec TEM hexagonal mesh support grids, 90 Mesh, Copper |
| 21-2H0090 | EM-Tec TEM hexagonal mesh support grids, 90 Mesh, Nickel |
|
Griglie di supporto a maglia esagonale EM-Tec TEM, 135 mesh, foro 148×172 μm, 36 μm bar |
|---|---|
| Product # | Unit |
| 21-1H0135 | EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Copper |
| 21-2H0135 | EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Nickel |
| 21-3H0135 | EM-Tec TEM hexagonal mesh support grids, 135 Mesh, Gold |
 |
Griglie di supporto a maglia esagonale EM-Tec TEM, 180 mesh, foro 111×129 μm, barra 28 μm |
|---|---|
| Product # | Unit |
| 21-1H0180 | EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Copper |
| 21-2H0180 | EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Nickel |
| 21-3H0180 | EM-Tec TEM hexagonal mesh support grids, 180 Mesh, Gold |
 |
Griglie di supporto a maglia esagonale EM-Tec TEM, 180 mesh, foro 111×129 μm, barra 28 μm |
|---|---|
| Product # | Unit |
| 21-1H0270 | EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Copper |
| 21-2H0270 | EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Nickel |
| 21-3H0270 | EM-Tec TEM hexagonal mesh support grids, 270 Mesh, Gold |
 |
Griglie di supporto mesh esagonali EM-Tec TEM, 360 mesh, foro 41×51 μm, 26 μm bar |
|---|---|
| Product # | Unit |
| 21-1H0360 | EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Copper |
| 21-2H0360 | EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Nickel |
| 21-3H0360 | EM-Tec TEM hexagonal mesh support grids, 360 Mesh, Gold |
 |
EM-Tec slotted mesh TEM support grids, 50/200 mesh, 425×87 μm hole, 40 μm bar |
|---|---|
| Product # | Unit |
| 21-1R0520 | EM-Tec slotted mesh TEM support grids, 50/200 mesh, Copper |
| 21-2R0520 | EM-Tec slotted mesh TEM support grids, 50/200 mesh, Nickel |
 |
Griglie di supporto TEM a maglia scanalata EM-Tec, 75/300 mesh, foro 285×55 μm, barra 30 μm |
|---|---|
| Product # | Unit |
| 21-1R0730 | EM-Tec slotted mesh TEM support grids, 75/300 mesh, Copper |
| 21-2R0730 | EM-Tec slotted mesh TEM support grids, 75/300 mesh, Nickel |
| 21-3R0730 | EM-Tec slotted mesh TEM support grids, 75/300 mesh, Gold |
 |
Griglie di supporto TEM a maglia sfalsata EM-Tec sfalsate, maglia 75/300, foro 284×55 μm, barra 30 μm |
|---|---|
| Product # | Unit |
| 21-1RS730 | EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Copper |
| 21-2RS730 | EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Nickel |
| 21-3RS730 | EM-Tec staggered slotted mesh TEM support grids, 75/300 mesh, Gold |
 |
Griglie di supporto TEM a maglia scanalata EM-Tec, 100/400 mesh, foro 231×40 μm, 23 μm bar |
|---|---|
| Product # | Unit |
| 21-1R1040 | EM-Tec slotted mesh TEM support grids, 100/400 mesh, Copper |
| 21-2R1040 | EM-Tec slotted mesh TEM support grids, 100/400 mesh, Nickel |
 |
Griglie di supporto TEM pieghevoli EM-Tec, maglia 50/50, foro 425/425 μm, barra 83/83 μm |
|---|---|
| Product # | Unit |
| 21-1D0505 | EM-Tec folding TEM support grids, 50/50 mesh, Copper |
| 21-2D0505 | EM-Tec folding TEM support grids, 50/50 mesh, Nickel |
| 21-3D0505 | EM-Tec folding TEM support grids, 50/50 mesh, Gold |
 |
Griglie di supporto TEM pieghevoli EM-Tec, maglia 100/100, foro 205/205 μm, barra 49/49 μm |
|---|---|
| Product # | Unit |
| 21-1D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Copper |
| 21-2D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Nickel |
| 21-3D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Gold |
| 21-4D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Molybdenum |
| 21-6D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Titanium |
| 21-7D1010 | EM-Tec folding TEM support grids, 100/100 mesh, Stainless Steel |
 |
Griglie di supporto TEM pieghevoli EM-Tec, maglia 100/200, foro 205/90 μm, barra 49/37 μm |
|---|---|
| Product # | Unit |
| 21-1D1020 | EM-Tec folding TEM support grids, 100/200 mesh, Copper |
| 21-2D1020 | EM-Tec folding TEM support grids, 100/200 mesh, Nickel |
| 21-3D1020 | EM-Tec folding TEM support grids, 100/200 mesh, Gold |
| 21-4D1010 | EM-Tec folding TEM support grids, 100/200 mesh, Molybdenum |
| 21-6D1020 | EM-Tec folding TEM support grids, 100/200 mesh, Titanium |
| 21-7D1020 | EM-Tec folding TEM support grids, 100/200 mesh, Stainless Steel |
 |
Griglie di supporto TEM pieghevoli EM-Tec, maglia 100/300, foro 205/57 μm, barra 49/28 μm |
|---|---|
| Product # | Unit |
| 21-1D1030 | EM-Tec folding TEM support grids, 100/300 mesh, Copper |
| 21-2D1030 | EM-Tec folding TEM support grids, 100/300 mesh, Nickel |
| 21-3D1030 | EM-Tec folding TEM support grids, 100/300 mesh, Gold |
| 21-6D1030 | EM-Tec folding TEM support grids, 100/300 mesh, Titanium |
| 21-7D1030 | EM-Tec folding TEM support grids, 100/300 mesh, Stainless Steel |
 |
Griglie di supporto TEM pieghevoli EM-Tec, maglia 100/400, foro 205/38 μm, barra 49/26 μm |
|---|---|
| Product # | Unit |
| 21-1D1040 | EM-Tec folding TEM support grids, 100/400 mesh, Copper |
| 21-2D1040 | EM-Tec folding TEM support grids, 100/400 mesh, Nickel |
 |
Griglie di supporto TEM di riferimento pieghevole EM-Tec, maglia 200/200, foro 112/108 μm, barra 15/19 μm |
|---|---|
| Product # | Unit |
| 21-1D2020 | EM-Tec folding reference TEM support grids, 200/200 mesh, Copper |
| 21-2D2020 | EM-Tec folding reference TEM support grids, 200/200 mesh, Nickel |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 400um |
|---|---|
| Product # | Unit |
| 21-1A0400 | EM-Tec aperture TEM support grid, 400um hole, Copper |
| 21-2A0400 | EM-Tec aperture TEM support grid, 400um hole, Nickel |
| 21-4A0400 | EM-Tec aperture TEM support grid, 400um hole, Molybdenum |
| 21-6A0400 | EM-Tec aperture TEM support grid, 400um hole, Titanium |
| 21-7A0400 | EM-Tec aperture TEM support grid, 400um hole, Stainless Steel |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 600um |
|---|---|
| Product # | Unit |
| 21-1A0600 | EM-Tec aperture TEM support grid, 600um hole, Copper |
| 21-2A0600 | EM-Tec aperture TEM support grid, 600um hole, Nickel |
| 21-3A0600 | EM-Tec aperture TEM support grid, 600um hole, Gold |
| 21-4A0600 | EM-Tec aperture TEM support grid, 600um hole, Molybdenum |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 800um |
|---|---|
| Product # | Unit |
| 21-1A0800 | EM-Tec aperture TEM support grid, 800um hole, Copper |
| 21-2A0800 | EM-Tec aperture TEM support grid, 800um hole, Nickel |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 1000um |
|---|---|
| Product # | Unit |
| 21-1A1000 | EM-Tec aperture TEM support grid, 1000um hole, Copper |
| 21-2A1000 | EM-Tec aperture TEM support grid, 1000um hole, Nickel |
| 21-3A1000 | EM-Tec aperture TEM support grid, 1000um hole, Gold |
| 21-4A1000 | EM-Tec aperture TEM support grid, 1000um hole, Molybdenum |
| 21-5A1000 | EM-Tec aperture TEM support grid, 1000um hole, Aluminium |
| 21-6A1000 | EM-Tec aperture TEM support grid, 1000um hole, Titanium |
| 21-7A1000 | EM-Tec aperture TEM support grid, 1000um hole, Stainless Steel |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 1500um |
|---|---|
| Product # | Unit |
| 21-1A1500 | EM-Tec aperture TEM support grid, 1500um hole, Copper |
| 21-2A1500 | EM-Tec aperture TEM support grid, 1500um hole, Nickel |
| 21-4A1500 | EM-Tec aperture TEM support grid, 1500um hole, Molybdenum |
| 21-5A1500 | EM-Tec aperture TEM support grid, 1500um hole, Aluminium |
| 21-6A1500 | EM-Tec aperture TEM support grid, 1500um hole, Titanium |
| 21-7A1500 | EM-Tec aperture TEM support grid, 1500um hole, Stainless Steel |
 |
Griglia di supporto TEM con apertura EM-Tec, foro 2000um |
|---|---|
| Product # | Unit |
| 21-1A2000 | EM-Tec aperture TEM support grid, 2000um hole, Copper |
| 21-2A2000 | EM-Tec aperture TEM support grid, 2000um hole, Nickel |
 |
Griglie di supporto TEM con intaglio EM-Tec, slot 0,2×0,5 mm |
|---|---|
| Product # | Unit |
| 21-1S0205 | EM-Tec slotted TEM support grids, 0.2×0.5mm slot, Copper |
| 21-2S0205 | EM-Tec slotted TEM support grids, 0.2×0.5mm slot, Nickel |
 |
Griglie di supporto TEM con intaglio EM-Tec, slot 0,2×1,5mm |
|---|---|
| Product # | Unit |
| 21-1S0215 | EM-Tec slotted TEM support grids, 0.2×1.5mm slot, Copper |
| 21-2S0215 | EM-Tec slotted TEM support grids, 0.2×1.5mm slot, Nickel |
 |
Griglie di supporto TEM con intaglio EM-Tec, slot 0.42×2.0mm |
|---|---|
| Product # | Unit |
| 21-1S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Copper |
| 21-2S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Nickel |
| 21-4S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Molybdenum |
| 21-5S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Aluminium |
| 21-6S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Titanium |
| 21-7S0420 | EM-Tec slotted TEM support grids, 0.42×2.0mm slot, Stainless Steel |
 |
Griglie di supporto TEM con intaglio EM-Tec, slot 0.98×2.0mm |
|---|---|
| Product # | Unit |
| 21-1S1020 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Copper |
| 21-2S1020 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Nickel |
| 21-4S1020 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Molybdenum |
| 21-5S1020 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Aluminium |
| 21-6S0420 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Titanium |
| 21-7S1020 | EM-Tec slotted TEM support grids, 0.98×2.0mm slot, Stainless Steel |
 |
Griglie di supporto TEM finder EM-Tec, 200 mesh-R2, linea centrale di sei quadrati identificati con numeri A-Z-0-10 |
|---|---|
| Product # | Unit |
| 21-1F0200 | EM-Tec finder TEM support grids, 200 mesh-R2, Copper, centre line of six squares identified with numerals A-Z-0-10 |
| 21-2F0200 | EM-Tec finder TEM support grids, 200 mesh-R2, Nickel, centre line of six squares identified with numerals A-Z-0-10 |
| 21-3F0200 | EM-Tec finder TEM support grids, 200 mesh-R2, Gold, centre line of six squares identified with numerals A-Z-0-10 |
 |
Griglie di supporto TEM finder EM-Tec, 400 mesh-R7, centro di ciascun quadrato 6×4 identificato con numeri A-Z-1-14 |
|---|---|
| Product # | Unit |
| 21-1F0400 | EM-Tec finder TEM support grids, 400 mesh-R7, Copper, centre of each 6×4 squares identified with numerals A-Z-1-14 |
| 21-2F0400 | EM-Tec finder TEM support grids, 400 mesh-R7, Nickel, centre of each 6×4 squares identified with numerals A-Z-1-14 |
| 21-3F0400 | EM-Tec finder TEM support grids, 400 mesh-R7, Gold, centre of each 6×4 squares identified with numerals A-Z-1-14 |
 |
Griglie di supporto TEM finder EM-Tec, 100 mesh-F1, linea trasversale centrale di quattro quadrati identificati con le lettere A-L |
|---|---|
| Product # | Unit |
| 21-1F1100 | EM-Tec finder TEM support grids, 100 mesh-F1, Copper, centre cross line of four squares identified with letters A-L |
| 21-2F1100 | EM-Tec finder TEM support grids, 100 mesh-F1, Nickel, centre cross line of four squares identified with letters A-L |
| 21-3F1100 | EM-Tec finder TEM support grids, 100 mesh-F1, Gold, centre cross line of four squares identified with letters A-L |
 |
Griglie di supporto TEM finder EM-Tec, 200 mesh-F2, angolo di ogni quadrato 5×5 identificato con le lettere A-I |
|---|---|
| Product # | Unit |
| 21-1F1200 | EM-Tec finder TEM support grids, 200 mesh-F2, Copper, corner of each 5×5 squares identified with letters A-I |
| 21-2F1200 | EM-Tec finder TEM support grids, 200 mesh-F2, Nickel, corner of each 5×5 squares identified with letters A-I |
| 21-3F1200 | EM-Tec finder TEM support grids, 200 mesh-F2, Gold, corner of each 5×5 squares identified with letters A-I |
 |
Griglie di supporto TEM del cercatore EM-Tec, 300 mesh-F3, angolo di ogni quadrato 5×5 identificato con le lettere A-U |
|---|---|
| Product # | Unit |
| 21-1F1300 | EM-Tec finder TEM support grids, 300 mesh-F3, Copper, corner of each 5×5 squares identified with letters A-U |
| 21-2F1300 | EM-Tec finder TEM support grids, 300 mesh-F3, Nickel, corner of each 5×5 squares identified with letters A-U |
| 21-3F1300 | EM-Tec finder TEM support grids, 300 mesh-F3, Gold, corner of each 5×5 squares identified with letters A-U |
 |
Griglie di supporto TEM finder EM-Tec, 400 mesh-F4, angolo di ogni quadrato 5×5 identificato con le lettere A-Z-A-K |
|---|---|
| Product # | Unit |
| 21-1F1400 | EM-Tec finder TEM support grids, 400 mesh-F4, Copper, corner of each 5×5 squares identified with letters A-Z-A-K |
| 21-2F1400 | EM-Tec finder TEM support grids, 400 mesh-F4, Nickel, corner of each 5×5 squares identified with letters A-Z-A-K |
| 21-3F1400 | EM-Tec finder TEM support grids, 400 mesh-F4, Gold, corner of each 5×5 squares identified with letters A-Z-A-K |
Specifiche delle reti di supporto TEM a maglia quadrata di alta qualità EM-Tec
| Mesh | Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness* µm |
Tolerance ± µm | Diameter mm |
| 50 | 508 | 425 | 83 | 70 | 375 | 25 | 5 | 3.05 |
| 75 | 339 | 284 | 55 | 70 | 375 | 25 | 5 | 3.05 |
| 100 | 254 | 204 | 50 | 65 | 375 | 25 | 5 | 3.05 |
| 150 | 169 | 125 | 44 | 55 | 375 | 25 | 5 | 3.05 |
| 200 | 127 | 90 | 37 | 50 | 375 | 25 | 5 | 3.05 |
| 300 | 85 | 54 | 31 | 40 | 375 | 25 | 5 | 3.05 |
| 400 | 64 | 38 | 26 | 35 | 375 | 25 | 5 | 3.05 |
| 500 | 51 | 28 | 23 | 30 | 375 | 25 | 5 | 3.05 |
| 600 | 41 | 26 | 15 | 42 | 375 | 25 | 5 | 3.05 |
Specifiche delle reti di supporto EM-Tec TEM a maglia esagonale
| Mesh | Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness* µm |
Tolerance ± µm | Diameter mm |
| 90 | 272×317 | 224×269 | 48 | 70 | 375 | 25 | 5 | 3.05 |
| 135 | 186×208 | 148×172 | 36 | 65 | 375 | 25 | 5 | 3.05 |
| 180 | 139×157 | 111×129 | 28 | 65 | 375 | 25 | 5 | 3.05 |
| 270 | 86×99 | 62×75 | 24 | 55 | 375 | 25 | 5 | 3.05 |
| 360 | 67×79 | 41×51 | 26 | 40 | 375 | 25 | 5 | 3.05 |
Specifiche delle griglie di supporto EM-Tec TEM pieghevoli, doppie o ostriche
| Mesh | Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness* µm |
Tolerance ± µm | Diameter mm |
| 50/50 | 508/508 | 425/425 | 83/83 | 70/70 | 375 | 2 x 25 | 5 | 3.05 |
| 100/100 | 254/254 | 205/205 | 49/49 | 65/65 | 375 | 2x 25 | 5 | 3.05 |
| 100/200 | 254/127 | 205/90 | 49/37 | 65/50 | 375 | 2 x 25 | 5 | 3.05 |
| 100/300 | 254/85 | 205/57 | 49/28 | 65/45 | 375 | 2 x 25 | 5 | 3.05 |
| 100/400 | 254/64 | 205/38 | 49/26 | 65/35 | 375 | 2 x 25 | 5 | 3.05 |
| 200/200 Reference |
127/127 | 112/108 | 15/19 | 78/72 | 275 | 2 x 25 | 2 | 3.0 |
Specifiche delle griglie di supporto EM-Tec TEM a singolo slot
| Slot | Width µm |
length µm |
Tolerance ± µm |
Thickness * µm |
Diameter mm |
| 205 | 200 | 500 | 10 | 25 | 3.05 |
| 215 | 339 | 284 | 10 | 25 | 3.05 |
| 420 | 420 | 2000 | 20 | 25 | 3.05 |
| 1020 | 980 | 2000 | 20 | 25 | 3.05 |
Specifiche delle reti di supporto TEM di riferimento / cercatore EM-Tec
| Mesh | Pitch µm | Hole µm Thin/Thick | Bar µm Thin/Thick | Transmission % | Thickness µm | Tolerance ±µm | Diameter mm |
| 100 | 254 | 214 / 214 | 40/40 | 70 | 25 | 5 | 3.05 |
| 200 | 127 | 89 / 63 | 38/64 | 37 | 25 | 5 | 3.05 |
| 300 | 85 | 67 / 42 | 18/43 | 49 | 25 | 5 | 3.05 |
| 400 | 64 | 44 / 17 | 20/47 | 31 | 25 | 5 | 3.05 |
Per preventivi e richieste commerciali in merito a questo prodotto compila il form sottostante:
Iscriviti alla nostra newsletter
Media System Lab S.r.l.
Via Visconti di Modrone, 31
20846 Macherio MB, Italia
Via delle Zigherane 4/a
Be Factory Modulo B09.01
38068 Rovereto TN, Italia
P.IVA 02774510966
Phone: +39.351.76.03.399
Phone: +39.039.23.23.148
Email: info@m-s.it
Contattaci per richiedere informazioni riguardo i nostri prodotti e servizi, entra in contatto con in nostri esperti.
