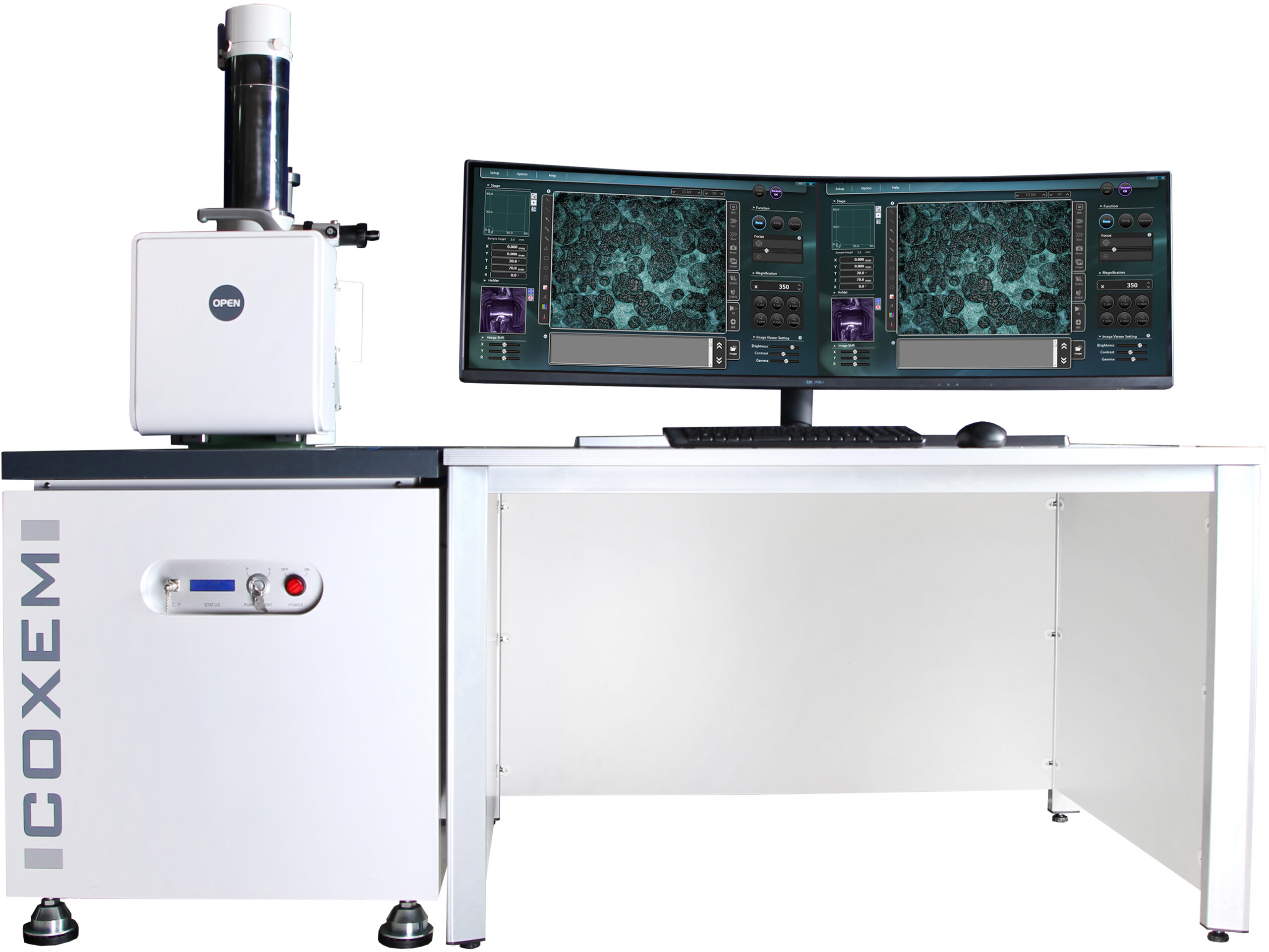

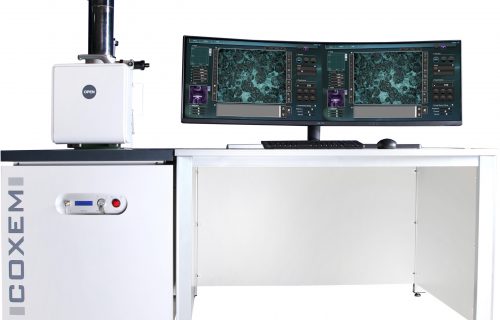

The scanning electron microscope CX200Plus is the evolution of the traditional COXEM SEM.

CX200Plus is a powerful and easy to use SEM, able to reach 3nm resolution, to analyze every kind of sample.

The traditional COXEM scanning electron microscope is used for a variety of applications, ranging from materials science to life science, always granting great results.

Differently from its competitors, this microscope is compatible with a number of high quality accessories, such as the Energy Dispersive X-ray Spectroscopy (EDS) and the Cool stage for the analysis of biological and liquid-state samples.

Next to the above mentioned accessories, other features make this SEM unique in its market segment, including the possibility to mix the secondary and backscattered signals in one single image, and the Panorama option that combines hundreds or thousands of SEM images into one single picture through an advanced stitching function, making it possible to analyze large areas with high resolution.

This SEM has been developed for laboratories, companies and facilities with a limited budget, which need an instrument with an high implementation level.

The software interface is easy and intuitive, and it allows users to explore all of the SEM potentialities starting from the first use.

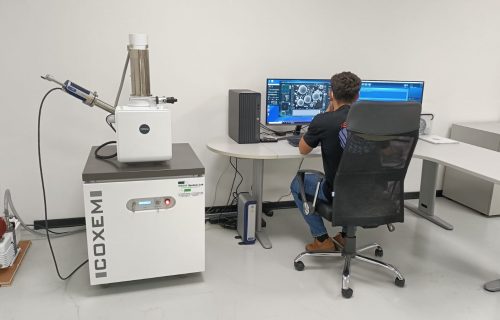

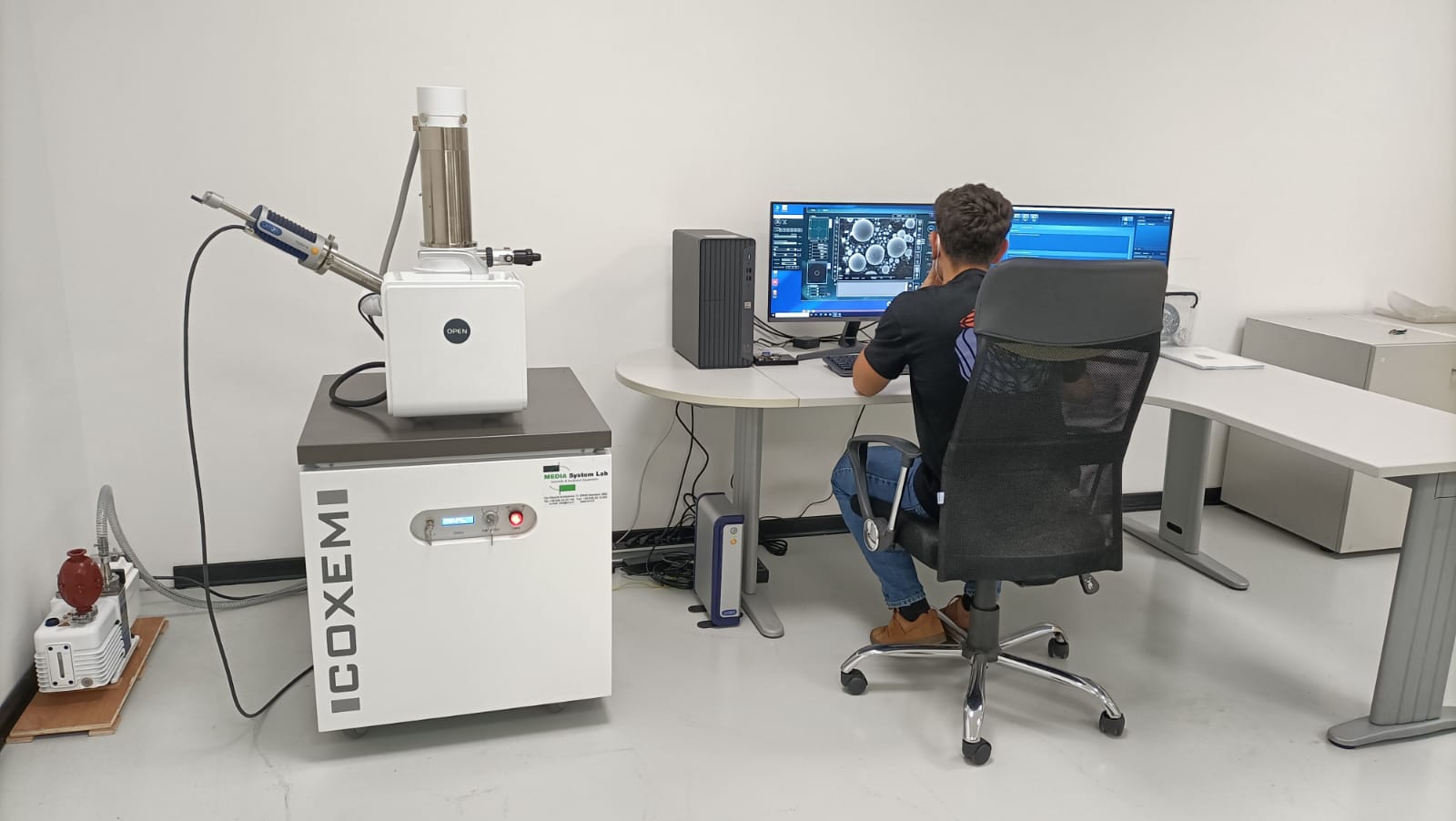

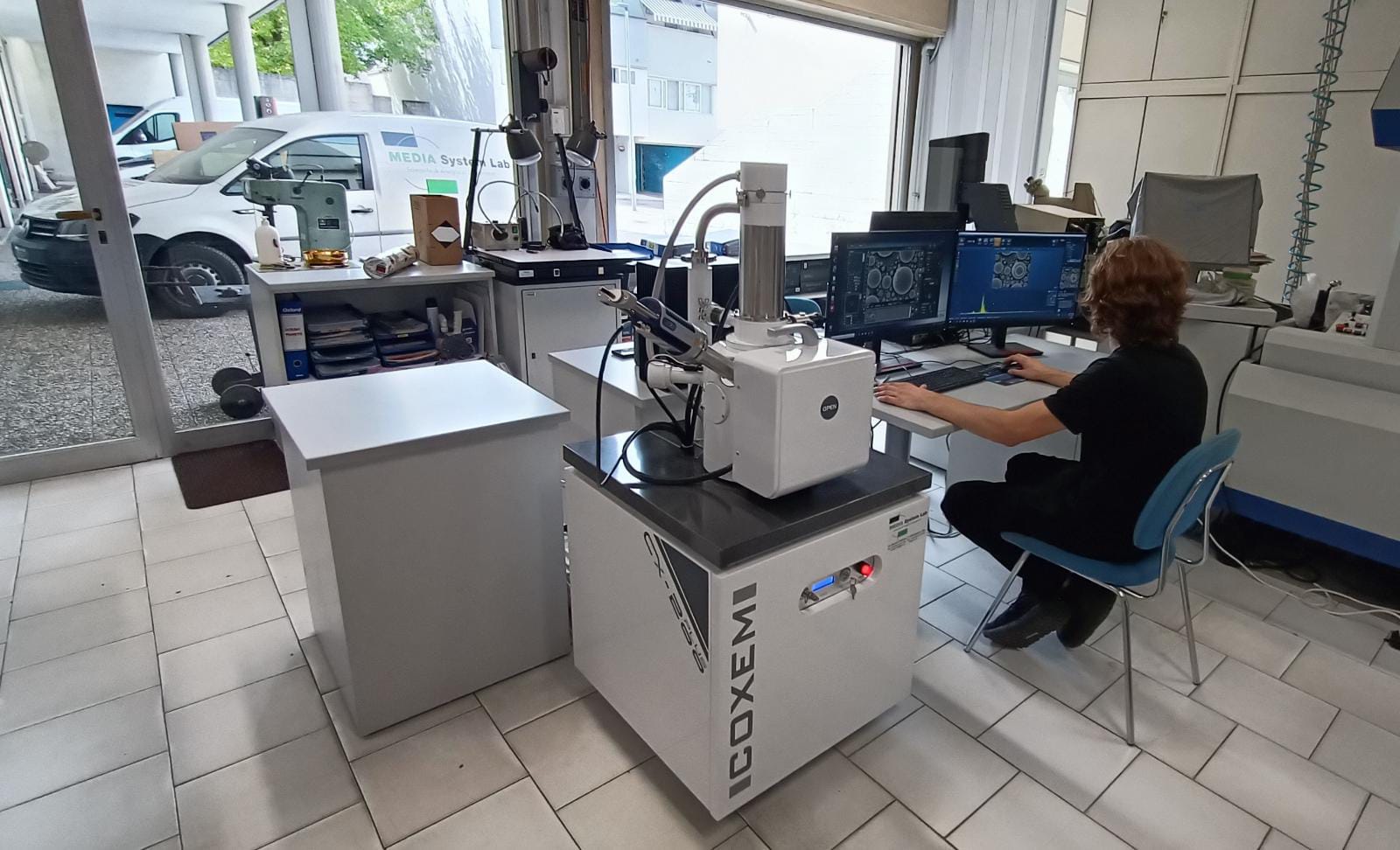

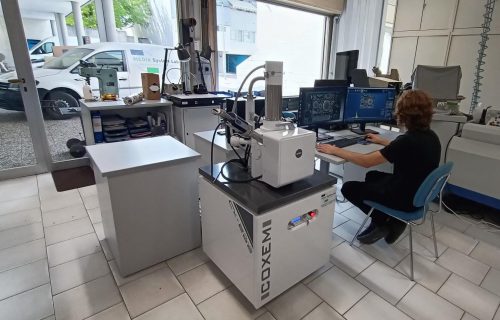

The technical and applicative support offered by Media System Lab (operating in the field of electronic microscopy since more than 20 years) is always by your side, to help you exploit this instrument in the best possible way. The CX200Plus microscope is installed in our Demo Space, so you can come and try it any time.

Options

Low vacuum, tensil stage, Tensil Stage, 3D reconstruction, joystick, EDS, WDS, EBSD, cool stage, STEM detector, panorama

Magnificationx15 ~ x300.000
Resolution≤3nm
Acceleration1kV ~30kV
Electron GunTungsten Filament (W)
DetectorSE / BSE 4 Channel
StageX: 40mm Y: 60mm Z: 0-60mm
Vacuum SystemRotary Pump, Turbo Molecular Pump (Less than 4min)
T-20 to 90° R: 360°
OSWindows 7
OperationMouse, Keyboard
Dimension800(W) x 900(L) x 1500(H)mm

Your Laboratory Partner

Since 1998, Media System Lab has focused its attention on Quality Research and Attention to Customer needs

Contact us to learn more about CX200Plus
